Homelab Infrastructure

This project outlines the architecture and deployment of a self-hosted homelab environment. By utilizing a virtualized foundation, the system moves away from single-service hardware into a modular environment that prioritizes uptime, security, and rapid testing.

Infrastructure Foundation

The primary hypervisor for this stack is Proxmox VE. Choosing a Type-1 hypervisor allows for the operation of multiple isolated services (VMs and LXCs) on a single machine. This approach prevents dependency collisions and provides a robust framework for backups and service migration.

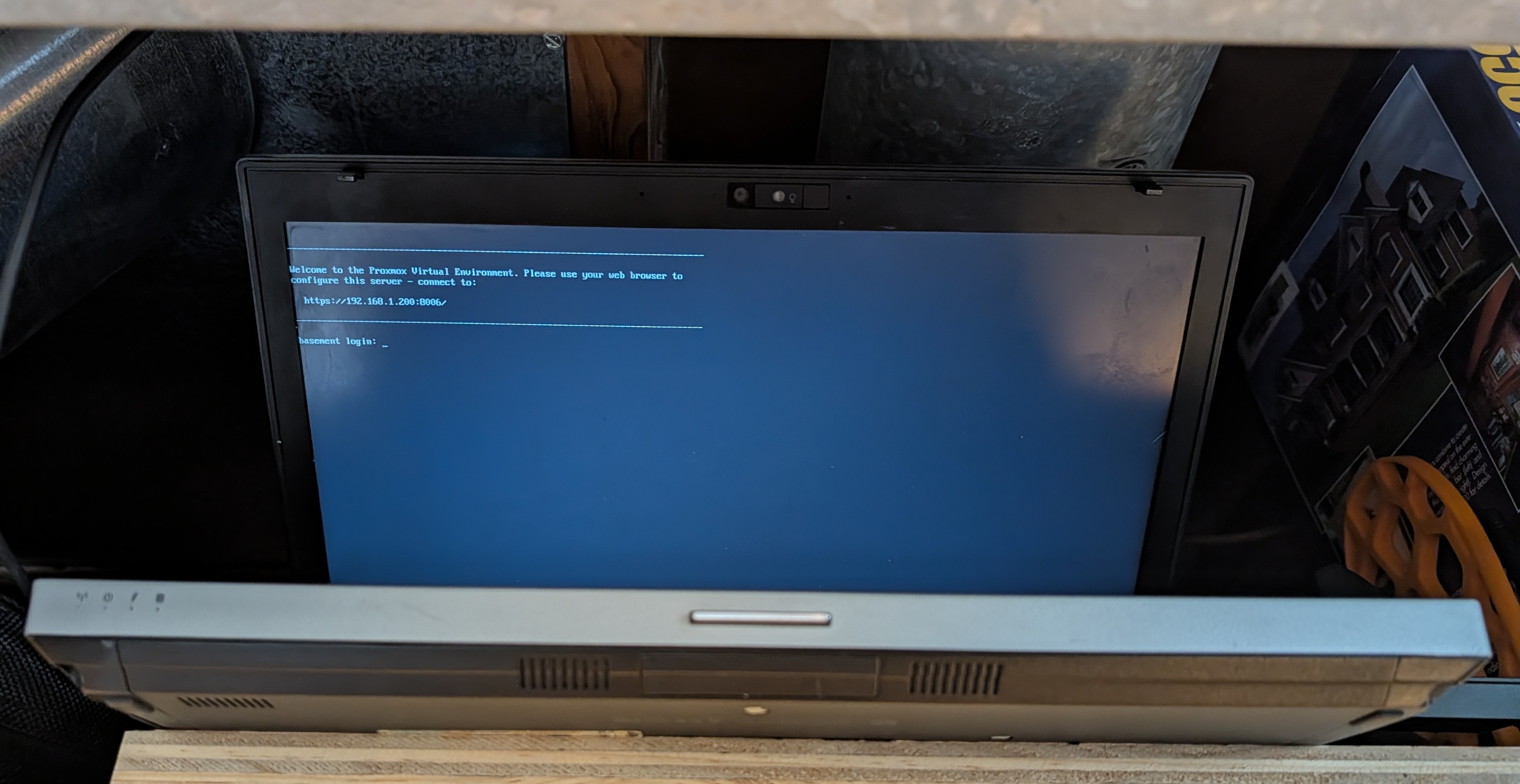

A central element of this hardware strategy is the utilization of an HP Elitebook (retired from daily use in 2019). While no longer suitable as a primary workstation, it remains a high-value server node. Its integrated battery acts as a built-in UPS during power fluctuations, and its compact, energy-efficient design is ideal for 24/7 operation. The built-in display and keyboard also provide an immediate “crash cart” interface for direct troubleshooting without requiring external peripherals.

The Service Stack

The following services are currently deployed and managed within the Proxmox environment:

Service	Platform	Function
Home Assistant (HAOS)	Virtual Machine	Centralized brain for automation and sensor data orchestration.
Nginx Proxy Manager	LXC	Traffic controller handling SSL termination and friendly URL routing.
WireGuard	LXC	Secure, low-overhead VPN tunnel for remote network access.

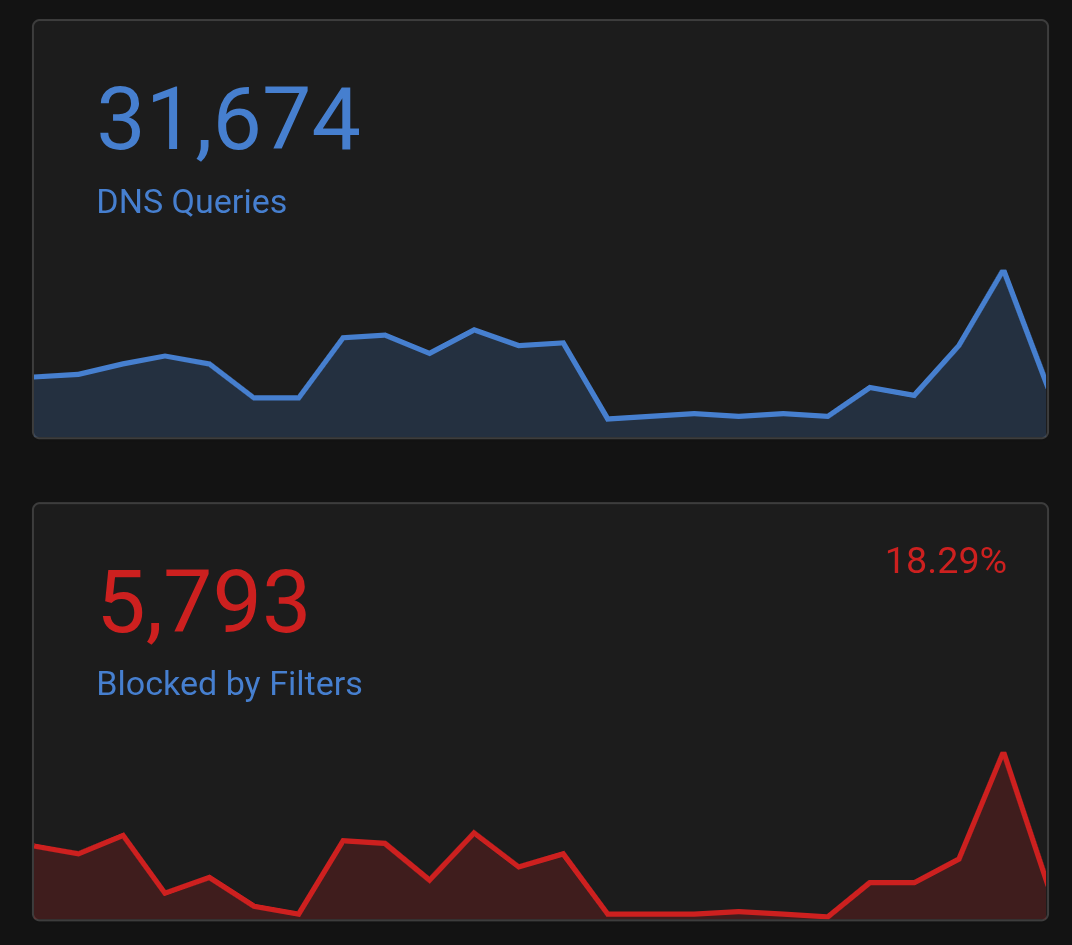

AdGuard Home	HA Integration	Network-wide DNS filtering and real-time connection statistics.
DigitalOcean DDNS	Bash Script	Custom API integration to maintain endpoint connectivity.
Zigbee2MQTT	LXC	Hardware-bridged interface for the local smart device mesh.

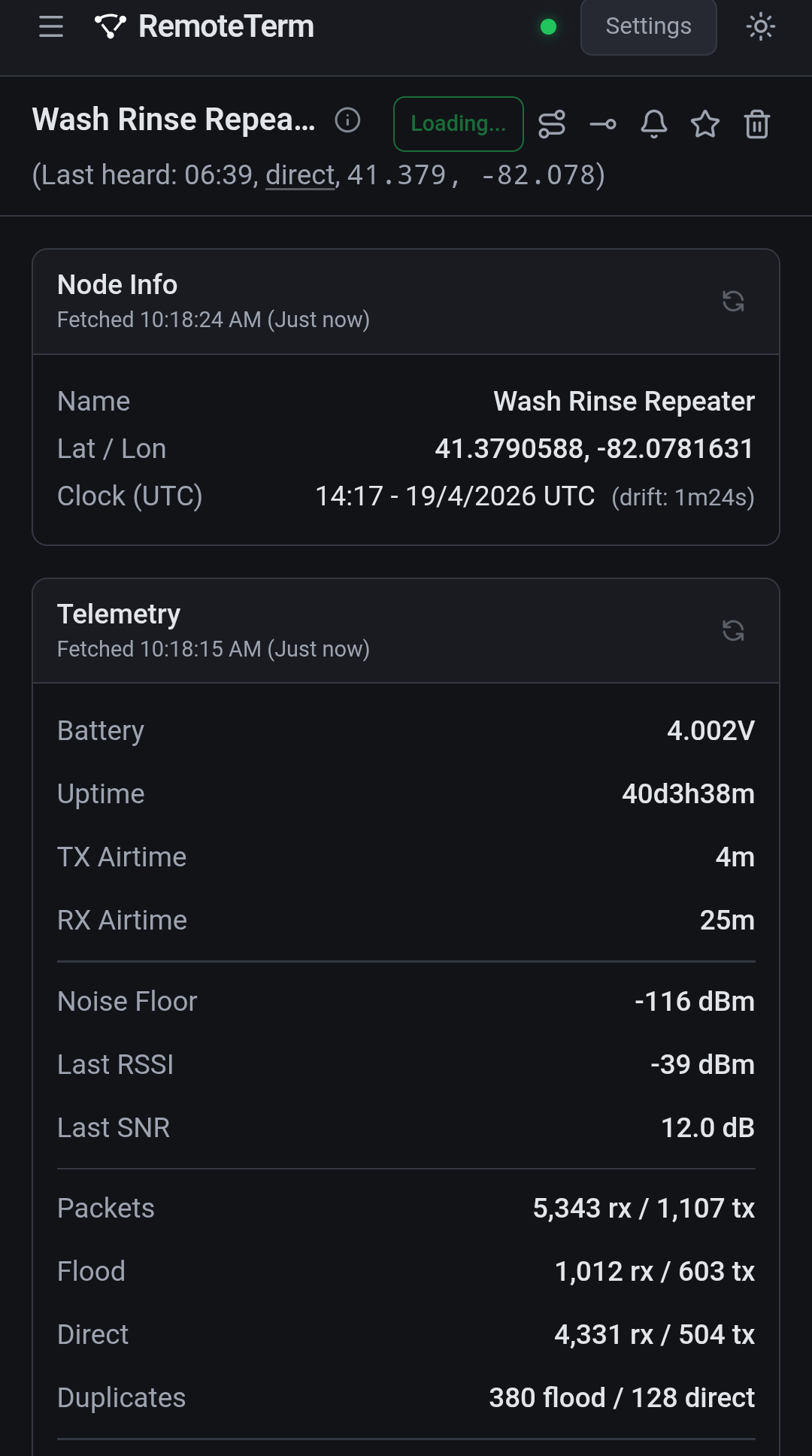

RemoteTerm	LXC	Remote availability of Meshcore Home Base for offgrid wireless comms, even when I’m away from home.

Challenges and Reliability Improvements

Zigbee Stability and Interference

One of the most persistent hurdles involved the reliability of the Zigbee mesh. Devices would frequently drop off the network, which was eventually traced to interference from the host.

• The Fix: The Zigbee coordinator was moved to a USB 2.0 extension cable to distance it from the interference source. Additionally, passing the hardware directly into a dedicated LXC improved communication latency.

Connectivity and Dynamic IP Management

Since the ISP rotates the public IP address, maintaining a consistent remote connection was a challenge.

• The Fix: A custom Bash script was developed to interface with the DigitalOcean API. This script automatically detects public IP changes and updates the DNS records, ensuring that the WireGuard tunnel and other remote services remain reachable without manual intervention.

Network Navigation and Security

Managing multiple services via different port numbers was inefficient and difficult to secure.

• The Fix: Nginx Proxy Manager was implemented to route traffic via friendly internal URLs (e.g., proxmox.home). This centralizes SSL management and ensures that sensitive administrative interfaces remain hidden behind a single, authenticated gateway.

Decision Logic & Rationale

• Virtualization over Bare Metal: Proxmox was selected specifically for its snapshot capabilities. This allows for testing new configurations or software updates with a safety net, as the service can be reverted to a known-working state in seconds.
• LXC vs. VM Allocation: To maximize the utility of the laptop’s hardware, lightweight services like Mosquitto and Nginx Proxy Manager run in LXCs. This shares the host kernel and minimizes RAM overhead. Full VM isolation is reserved for Home Assistant (HAOS) to ensure the stability of the entire automation OS.

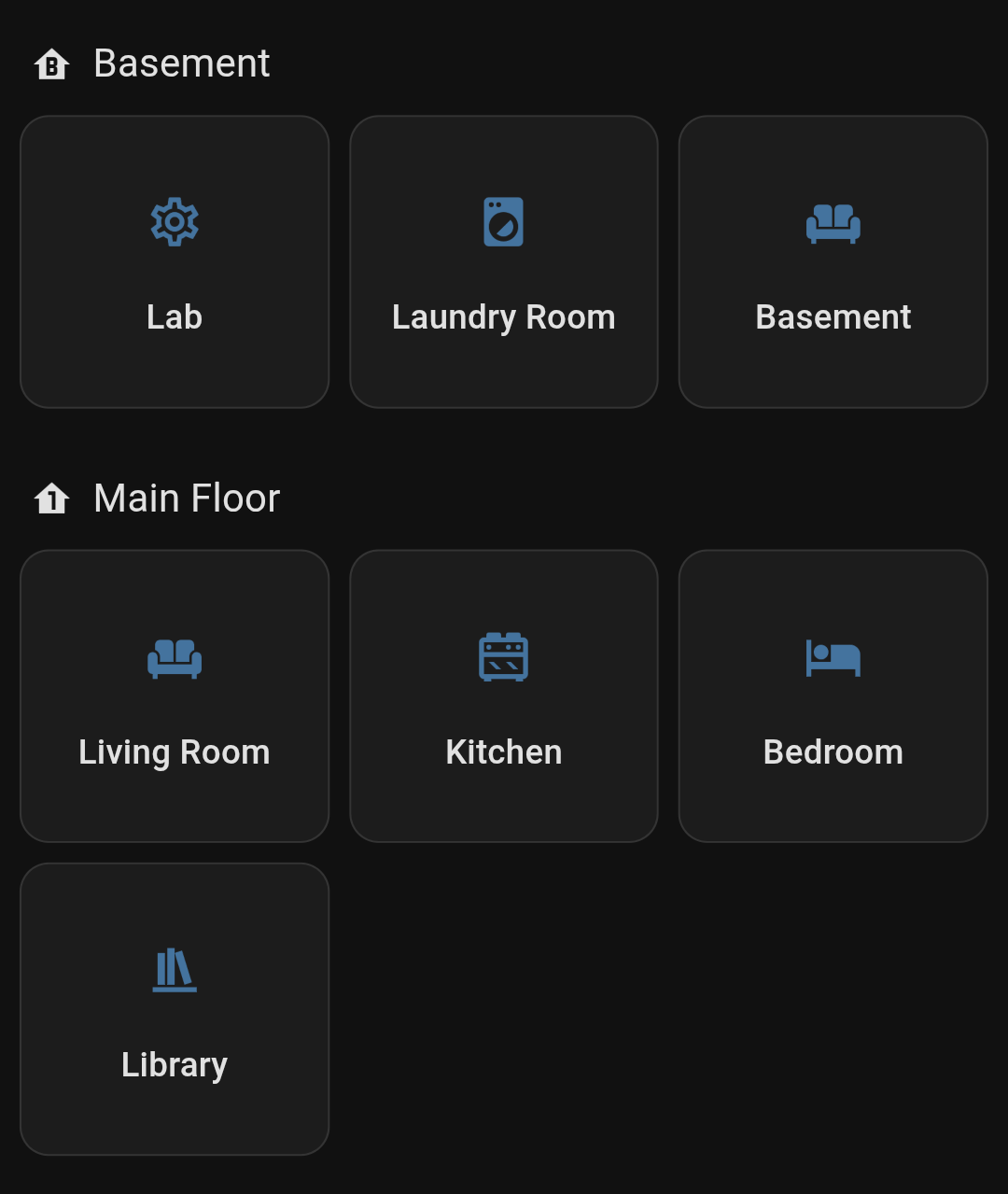

• Integrated Monitoring: Running AdGuard stats directly into the Home Assistant dashboard was a choice made for immediate visibility. It provides a single “pane of glass” to verify network health and filtering status at a glance.

Note on Hardware Resilience: Utilizing the HP Elitebook demonstrates that value in hardware is found in its application rather than its age. The built-in battery provides a level of resilience against power drops that would typically require expensive external equipment, making it a highly practical choice for a 24/7 service node.
